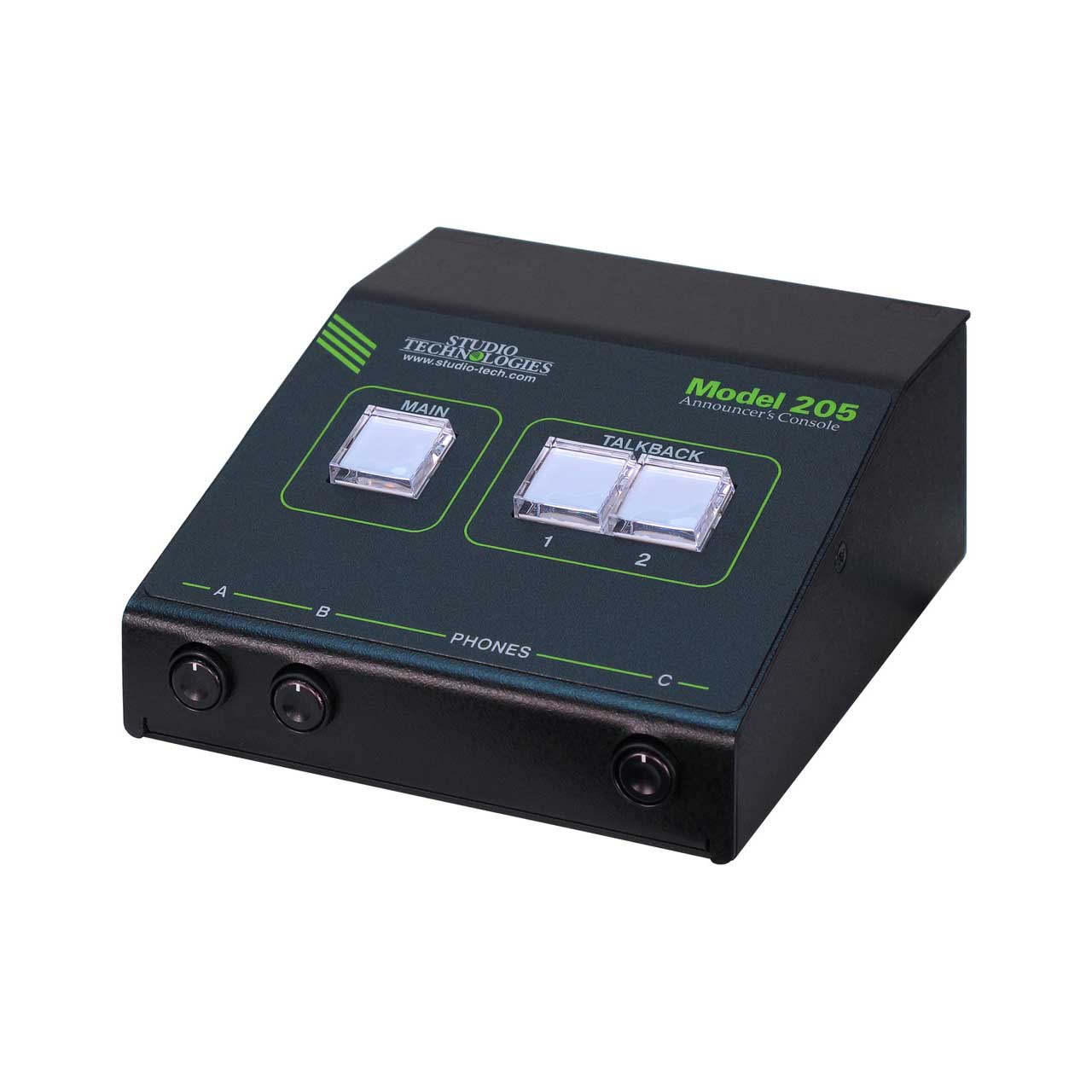

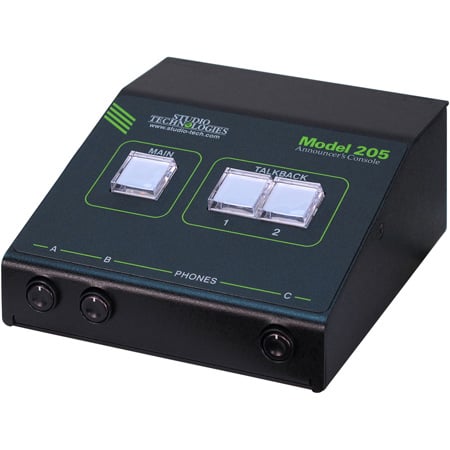

Studio Technologies MODEL 205 Dante Compatible Announcers Console with 2 Dante Talkback Outputs

MODEL 205 - Overview

• Features:

  • Dante audio-over-Ethernet technology
  • Digital audio and direct-microphone outputs
  • One main and two talkback output channels
  • Highly-flexible 2-channel headphone output
  • Compact unit supports one on-air location
  • Excellent audio quality
  • Uses STcontroller for configuration
  • Power-over-Ethernet (PoE) powered


• Specifications:

  • Network Audio Technology
  • Power Source: Power-over-Ethernet (PoE): class 2 (low power, ≤6.49 watts)
  • Type: Dante audio-over-Ethernet
  • AES67-2013 Support: yes
  • Dante Domain Manager (DDM) Support: yes
  • Bit Depth: up to 24
  • Sample Rate: 44.1 and 48 kHz
  • Number of Transmitter (Output) Channels: 3 (main, talkback 1, talkback 2)
  • Number of Receiver (Input) Channels: 4 (Headphone Ch1, Headphone Ch2, Headphone Ch3, Headphone Ch4)
  • Dante Audio Flows: 4; 2 transmitter, 2 receiver

    Network Interface
  • Type: 100BASE-TX, twisted-pair Ethernet, Power-over-Ethernet (PoE) supported
  • Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s "GigE" Ethernet not supported)

    Microphone Input
  • Compatibility: dynamic or phantom-powered microphones
  • Type: balanced, capacitive coupled
  • Impedance: 3.1 k ohms, nominal
  • Gain: 35, 43, 52, 59 dB, selectable
  • Frequency Response: 25 Hz to 20 kHz, -3 dB
  • Distortion (THD+N): <0.018%, measured at 35 dB of gain
  • Dynamic Range: 98 dB, A-weighted
  • Phantom Power: P48 per IEC 61938 standard, on/off selectable with status LED

    Compressor
  • Application: applies to Dante main and talkback transmitter (output) channels
  • Threshold: 1 dB above nominal level (-19 dBFS)
  • Slope: 2:1
  • Status LED: compressor active

    Microphone Output
  • Type: passive via two 200Ω resistors from microphone input (will pass phantom power in either direction)
  • Muting: solid-state relay contacts, 60 dB attenuation @ 1 kHz

    Headphone Output
  • Type: 2 channel (stereo)
  • Compatibility: intended for connection to stereo (dual-channel) or monaural (single-channel) headphones, headsets, or earpieces with nominal impedance of 50Ω or greater
  • Maximum Output Voltage: 3.0 Vrms, 1 kHz, 150 ohm load
  • Frequency Response: 20 Hz to 20 kHz, +0/-1 dB
  • Distortion (THD+N): <0.008%
  • Dynamic Range: >102 dB

    Other
  • Remote Control Inputs: 2
  • Functions: configurable to mimic the action of the main, talkback 1, or talkback 2 button functions
  • Type: active low, 1 mA maximum, inputs pull up to 3.3 volts DC

    Connectors
  • Microphone Input: 3-pin female XLR
  • Microphone Output: 3-pin male XLR
  • Headphone Output: 3-conductor ¼-inch jack
  • Remote Control Inputs: 3-conductor 3.5 mm jack
  • Ethernet: Neutrik etherCON RJ45
  • USB: type A receptacle (located inside Model 205's enclosure and used only for updating firmware)

    Configuration
  • Requires Studio Technologies STcontroller personal computer application, version 1.05.00 and later (STcontroller compatible with Windows® version 7 and later)

    Physical
  • Dimensions (Overall): 4.3"W x 2.1"H x 5.1"D
  • Deployment: intended for tabletop applications
  • Weight: 1.2 pounds (0.55 kg)


• Item Includes:

  • 1x Studio Technologies MODEL 205 Dante Compatible Announcers Console with 2 Dante Talkback Outputs
