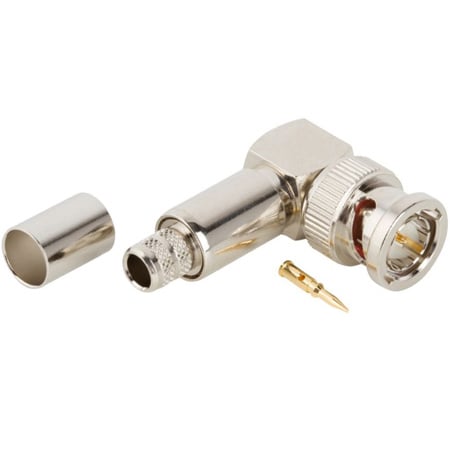

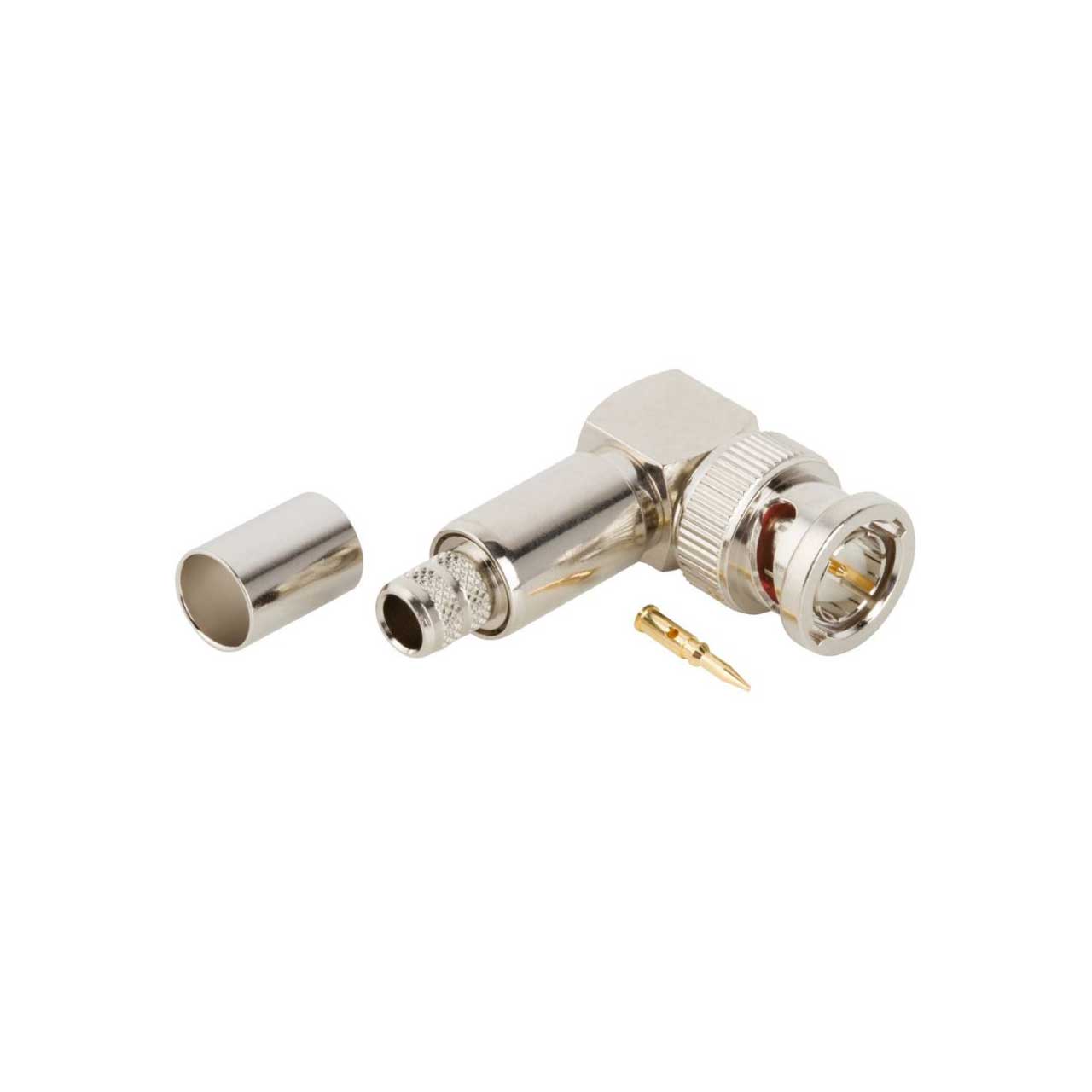

Amphenol 112540 BNC Right Angle Crimp Plug for RG-6 - 75 Ohm

ITEM #: AMPH-112540 MFG #: 112540

Primary Image
Amphenol
Free Shipping with $49 Minimum Order

List Price:

$15.00

Our Price:

$13.59

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

112540 - Overview

The 112540 is an RF connector with a BNC Right Angle Crimp Plug for RG-6, 75 Ohm. This plug features a nickel body with a brass finish and gold finished phosphor bronze contacts. Compatible cables, Belden 1152A, Belden 89248, Belden 9290, RG-143, RG-212, RG-54, RG-6, RG-6A

  • Specifications:

    • Orientation: Right Angle
    • Termination Style: Cable - Crimp
    • Impedance (Ohms): 75
    • Body Finish: Nickel
    • Body Material: Brass
    • Contact Finish: Gold
    • Contact Material: Phosphor Bronze
    • Contact Termination Style: Solder
    • Insulator Material: PTFE
    • Cable Group: G1
    • Cable Type: Belden 1152A, Belden 89248, Belden 9290, RG-143, RG-212, RG-54, RG-6, RG-6A
    • Coupling Mechanism: Bayonet
    • Max Frequency (GHz): 4
    • Polarity: Standard
    • Min. Temp. (Celsius): -65
    • Max. Temp. (Celsius): 165
    • Mating Cycles: 500
    • Weight (Grams): 26.5
