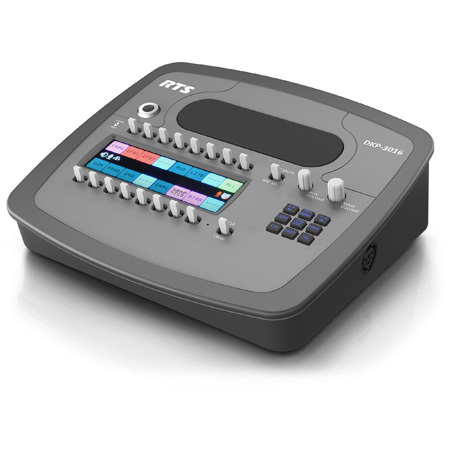

RTS DKP-3016 OMNEO 16 Lever Key IP Intercom Keypanel with Analog 5 and 4 Pin - Desktop

DKP-3016 - Overview

• Features:

  • Backward compatible with older technologies such as analog audio in USOC and 568-B connector formats.

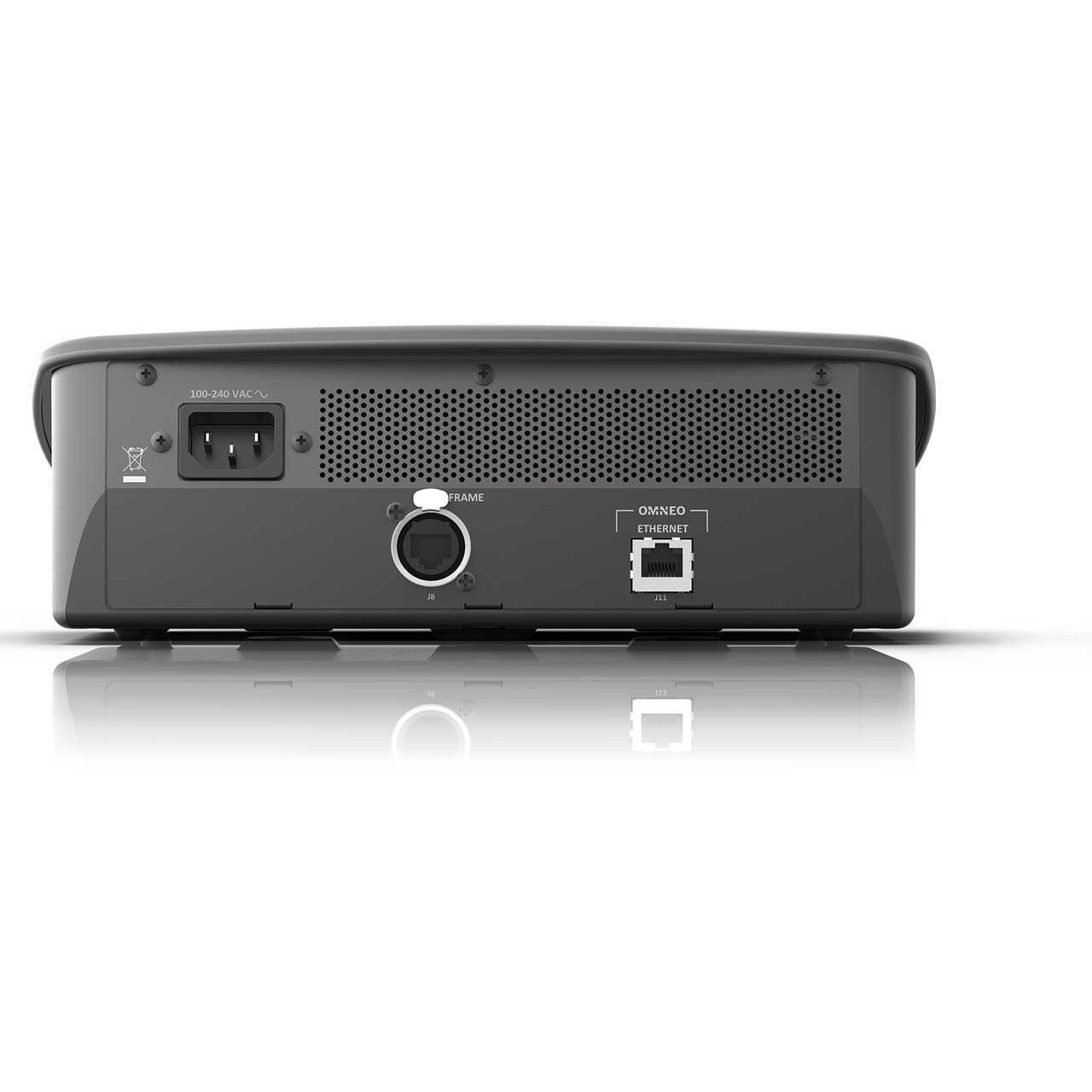

  • Comes with 4 and 5-pin female XLR connectors, analog matrix connection, and RJ45 connector for OMNEO.
  • Talk/listen lever keys. Volume may be adjusted with the volume control knob.
  • New wide-angle high-definition display.
  • Enhanced navigation menus optimized for ease of use.


• Specifications:

  • LCD Display
  • Active Area: 120.10 mm (wide) x 35.86 mm (high)
  • Dot Resolution: 576 x 172 pixels
  • Color Resolution: 16-bit (64K)RGB color
  • View Angle: 80 degrees (typical; all directions)

    Power Supply
  • Type: Internal
  • AC Input: 100-240VAC 50/60Hz

    Matrix Inputs
  • Type: Balanced
  • Typical Input Level: +8dBu
  • Typical Input Impedance: >10kΩ
  • Maximum Input Level: +20dBu
  • Supported Bandwidth: 100Hz to 20KHz

    Panel Mic Inputs
  • Type: Electret
  • Typical Input Level -42dBu
  • Typical Input Impedance 1kO
  • Maximum Input Level -25dBu

    Left and Right Headset Mic - Electret Inputs
  • Typical Input Level: -42dBu
  • Typical Input Impedance: 1kΩ
  • Maximum Input Level: -25dBu

    Left and Right Headset Mic - Dynamic Inputs
  • Typical Input Level: -50dBu
  • Typical Input Impedance: 600Ω
  • Maximum Input Level: -25dBu

    Matrix Outputs
  • Type: Balanced
  • Typical Output Level: +8dBu
  • THD+N%: <0.20%
  • Typical Output Impedance: 600Ω
  • Maximum Output Level: +20dBu
  • Frequency Response: 100Hz to 20KHz

    Digital
  • OMNEO Channels
  • Typical OMNEO Latency: 1ms
  • Frequency Response: 20Hz - 20KHz


• Item Includes:

  • 1x DKP-3016 Desktop Unit
  • 1x 3-pan head wood screw, M5 x 25
  • 1x RTS Additonal Website Information
  • 1x Safety Instructions
  • 1x LIT Quick Start Guide F / DKP-3016
  • 1x Notice, Open Source
