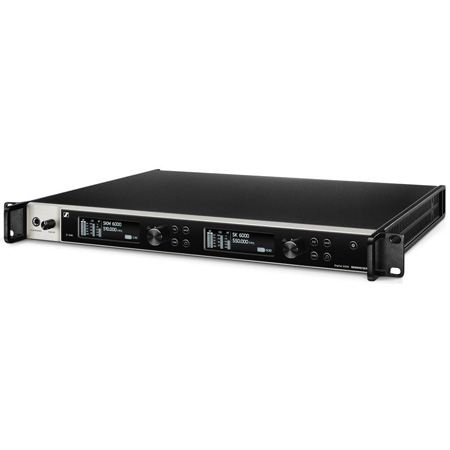

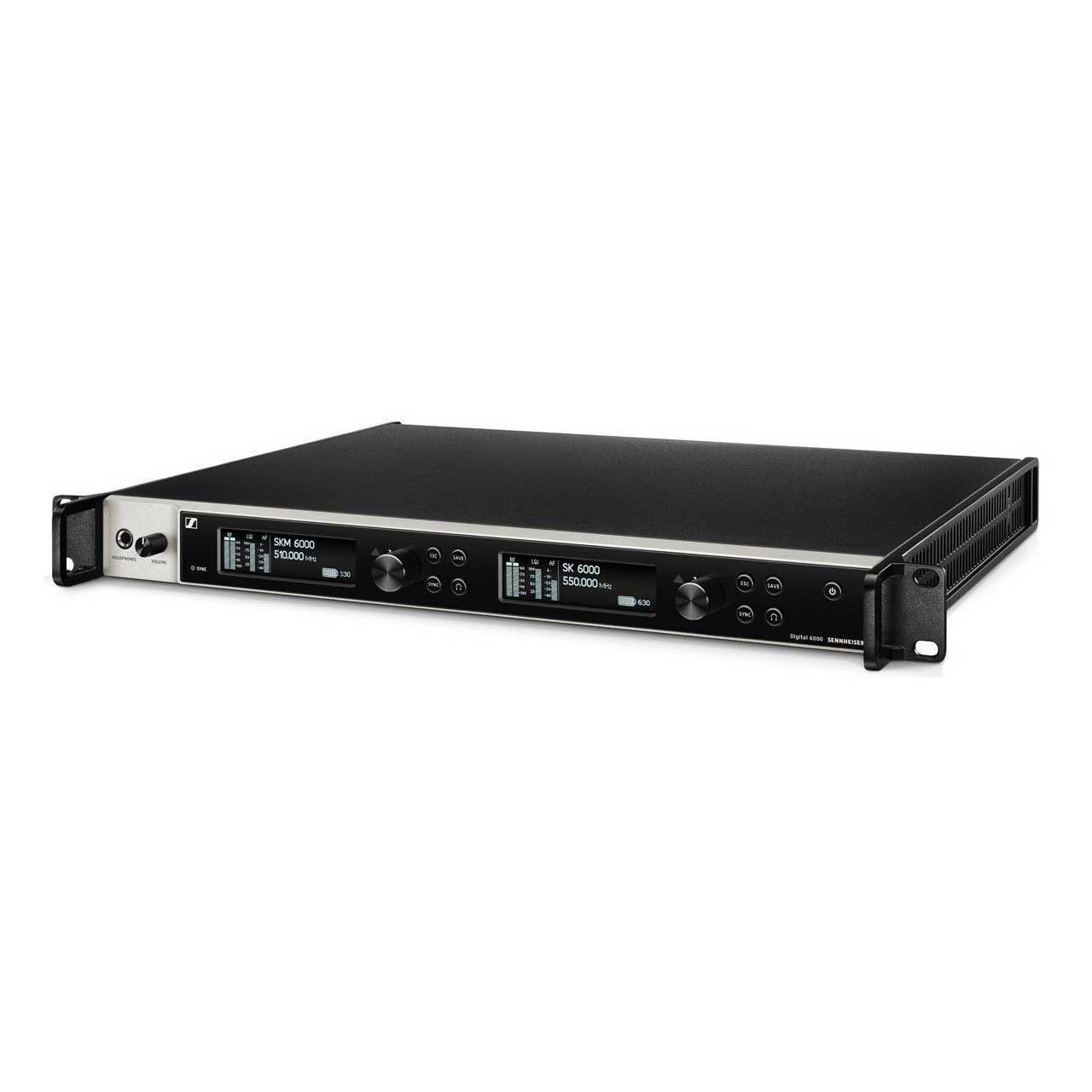

Sennheiser EM6000DANTEUS 2-Channel Digital Receiver - True-Bit-Diversity/LR Mode/Dante/AES-3/Active Antenna Splitter

ITEM #: SENN-EM6000DANTE MFG #: 508477

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$4,699.00

Our Price:

$3,999.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    508477 - Overview

    Senneheiser EM6000DANTEUS has a higher channel density with maximum signal reliability at the same time: Digital 6000 is intermodulation-free and assures through its equidistant frequency grid excellent spectral efficiency and the simplest frequency configuration- even in the toughest frequency environments where other systems already fail. Error correction and audio error masking recognize and fix problems long before they even become audible. When it comes to setup and the user interface, the EM 6000 stands out for clarity, relevance and short pathways.

    Digital 6000 can be seamlessly integrated into existing digital or analog infrastructures. The EM 6000 receiver has a digital AES-3 output with word clock inputs and outputs, high-quality transformer-balanced analog XLR and 6.3 mm jack outputs as well as a 6.3 mm headphone output. The Dante™ version with an Audinate Brooklyn ll card additionally offers two Amphenol RJ-45 connectors for integrating the receiver into a Dante™ network, for redundant networks or daisy chain cabling.

    Whether we’re talking about reducing information down to the really meaningful key values or smart menus on a high-contrast OLED display, every operating element is a result of practical experience and designed for practical use. All the vital parameters are summarized in one view. Important functions can be reached directly via home screens without long navigation paths. The auto-setup enables scanning and frequency distribution to all connected devices directly via the receiver; naturally Digital 6000 can also be monitored and configured via the Wireless System Manager (WSM).

    The EM 6000 is compatible with UHF Sennheiser antenna systems.

    • Features:

      • 19" 2-Channel receiver, 19 inch 1RU
      • Large 244 MHz switching bandwidth
      • Legendary Long Range mode (LR) with proprietary audio codec (SeDAC) from the masterpiece Digital 9000
      • True bit diversity utilizes both receiver paths, combines their information content to provide the best possible signal
      • Equidistant frequency grid for maximum channel density and simplest setup
      • 32 superior quality RF pre-selection filters for optimal suppression of interference signals at antenna input
      • Error correction and audio error masking
      • AES-256 encryption
      • Automatic frequency setup

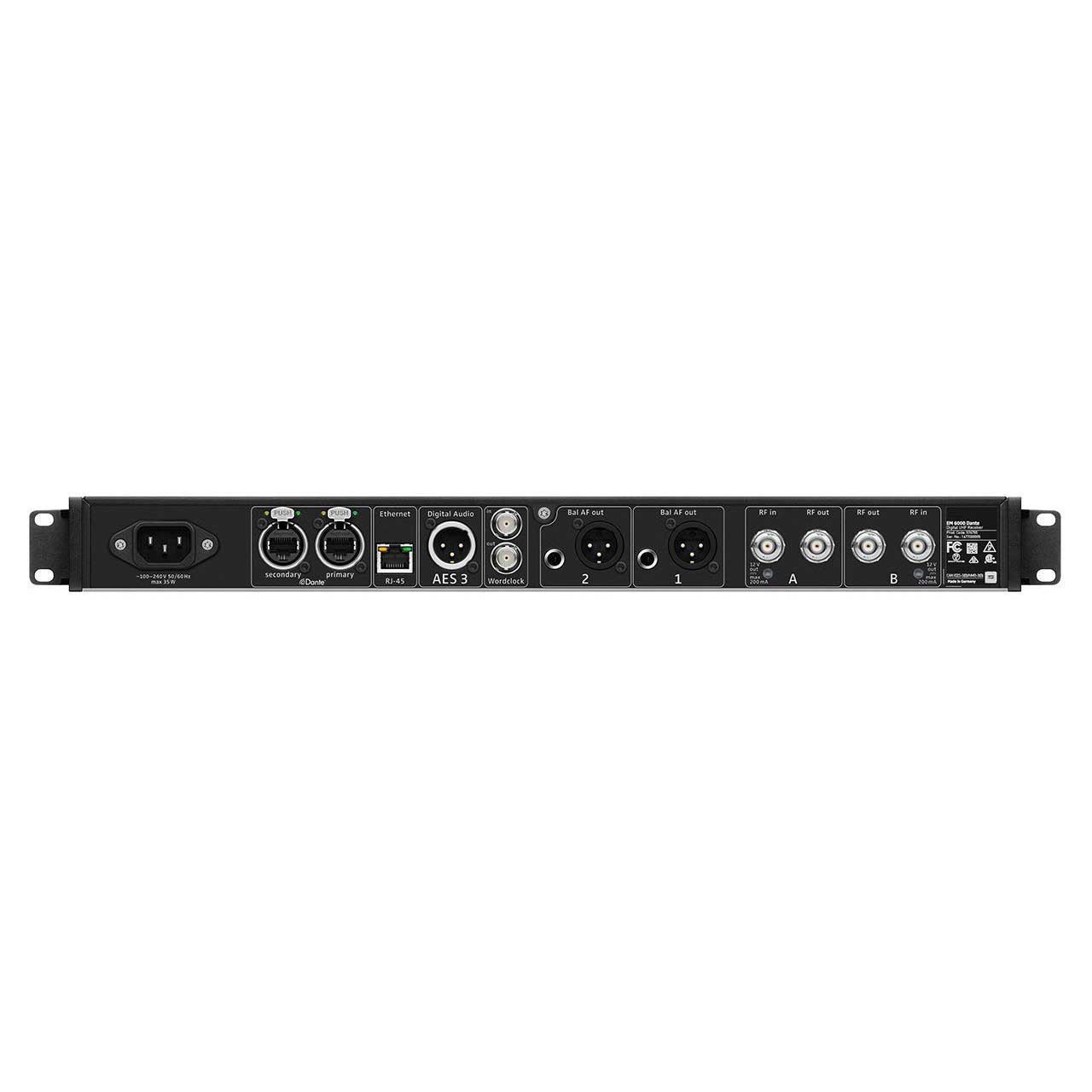

      • Digital and transformer balanced analog outputs XLR, 6.3 mm jack, AES-3, EM 6000 Dante with Brooklyn II Card and Amphenol RJ-45
      • Integrated antenna splitter for cascading of up to 8 systems

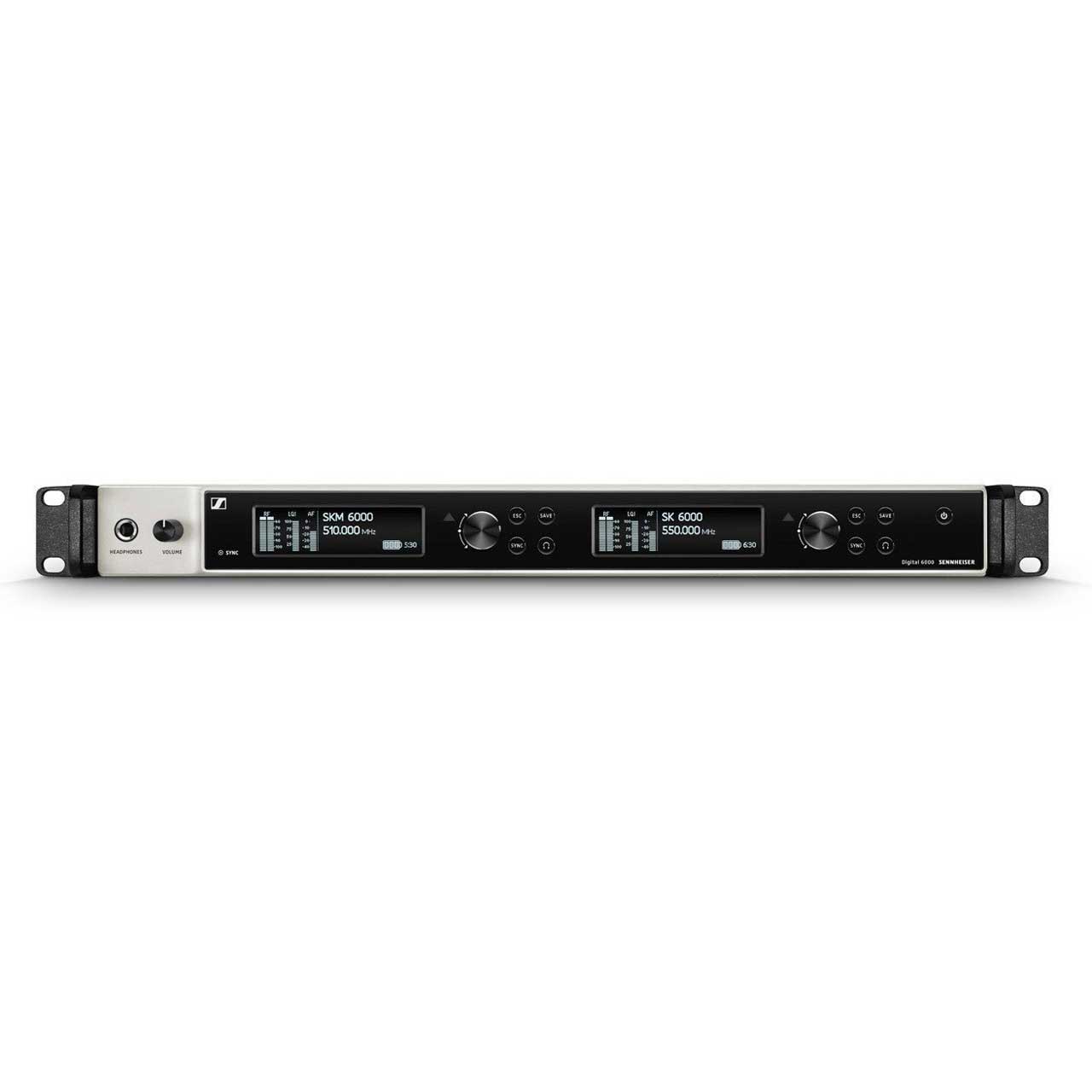

      • one high-quality OLED display per channel
      • Link Quality Indicator (LQI)
      • Wireless Systems Manager (WSM) compatible
      • Compatible with standard Sennheiser UHF antennas
      • Compatible with Digital 9000 transmitters in Long Range mode

    • Specifications:

      • Dimensions: 44 x 483 x 373 mm
      • Frequency response: 30 Hz - 20 kHz (1.5 dB)
      • THD: total harmonic distortion < 0.03 % (@ 1 kHz)
      • Weight: Approx. 5.2 kg
      • Power consumption: Max. 35 W
      • Audio output: Digital Audio outputs: AES3-2003, XLR-3: 48 kHz, 96 kHz, 24 bit; Dante™ RJ-45: 48 kHz, 96 kHz, 24 bit Can be externally synchronized using WCLK loop-through with BNC sockets; Analog Audio Outputs: XLR-3 and 6.3 mm jack per channel (transformer balanced) -10 dBu to +18 dBu in steps of 1 dB (2 kΩ)
      • Storage temperature: -25°C to +70°C
      • Operating temperature: -10°C to +50°C
      • Switching bandwidth: 244 MHz
      • Power supply: 90 - 240 V AC, 50/60 Hz
      • Antenna connector: Input 2x BNC (50 Ω), 12 V DC, max. 200 mA each via antenna sockets, short circuit proof, Output 2 x BNC (50 Ω)
      • Dynamic range: 111 dB (A) type
      • Frequency range: 470 - 714 MHz
      • Headphone output level: 6.3 mm jack, 2x 100 mW at 32 Ω
      • Image rejection: > 100 dB typ.
      • Sensitivity: -100 dBm typ.
      • Word clock Input: BNC, 75 Ω
      • Output: BNC, 75 Ω
      • Sampling Rates: 48 kHz, 96 kHz
      • Operating relative humidity Operation: Max. 85% at 40°C (non-condensing)
      • Storage: Max. 90% at 40°C (non-condensing)
      • Transmission method: Digital modulation, "LR" mode Min. frequency spacing for equidistant grid: 325 kHz
      • Latency Analog Audio Out: 3 ms
      • Digital Audio Out: 3 ms (AES/EBU)
      • Audio codec: SeDAC (Sennheiser Digital Audio Codec)
      • Network protocol: IEEE 802.3-2002 (10/100 Mbit/s), shielded RJ-45 connection
      • Receiver Principle: Double superheterodyne
      • Diversity principle: True bit diversity
      • Encryption: AES 256
      • Daisy chain outputs: 2x BNC (50 Ω) 0 dB +/- 0.5 dB amplification relative to antenna inputs
      • Receiving channels: 2
      • Daisy-chained receivers (RF): Max. 8 EM 6000 units
      • Dante™ (only EM 6000 DANTE): IEEE 802.3 (1000 Mbit/s), shielded RJ-45 connection
      • Power plug: 3-pin, protection class I as per IEC/EN 60320-1
      • Water Protection Code: The product must not be exposed to dripping and splashing (IP2X)

    • Item Includes:

      • 1 EM 6000
      • 1 mains cable (with EU, UK or US plug)
      • Quick guide
      • Safety guide
      • 2 Antennas
      • 2 BNC Antenna Cables (50 Ω) for Daisy-Chaining
      • 2 Rubber Feet

    • GTIN:

      0615104316997
